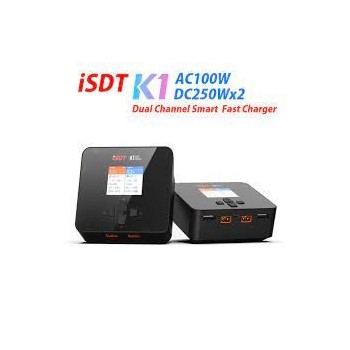

ISDT - K1 Dual Charger AC 100W / DC 250Wx2 CHARGER

Description "ISDT K1 Dual Charger AC 100W / DC 250Wx2 CHARGER"

AC/DC Dual mode:

Dual channel fast charge

Synchronous Parallel charging

2.4? IPS LCD Display

Safe access:

Fool-proof input interface.

Smart design

The DC input port and AC input port are mutually exclusive.

Only one input can be selected in one time.

Ensure the safety operation

High Power Synchronous Dual Channel, with Smart Charging:
Smart High Speed Processor delivers parameter interfere to each port. Hassle Free with Maximum charging power up to 250W for single port. Choose ISDT, Powered by Innovation.

Upgradeable Firmware:
By connecting the charger USB-C port to the PC, K1 can acquire latest firmware upgrading, ensure the charger have optimalized performance and latest firmware all the time.

scOS 2.0:
Upgraded scOS 2.0, not only optimizing the system with a new dimension level, also further improved the system stability. New features including DC Power mode, dark mode, battery scrap and more. Streamline support with BattGo and SmartPower, for further interconnection to ISDT ecosystem product information exchange.

Adjustable Digital Power Supply:
In adjustable digital power supply mode, the Max. power is AC 100W / DC 120W.
CC: 0.2~5.0A
CV: 5~24V

Introducing the dark mode:
scOS 2.0 new dark mode feature, Suitable for low light scenario, System will adjust the interface in dark tone, Reduce light damage to user’s eyes.
While remaining the iconic and comfortable charging display style.

Signature original creative interactive systems:
Serve 152 countries and regions, Support on line upgrading for more languages, and better interactive system for global market.


Features:

Input voltage: AC 100~240V / DC 10~30V

Output voltage: DC 1~26.4V

Max. input current: 20A

Charging current: 0.1~10A x2

Balance current: 0.5A/Cell Max

Max. charging power: AC 100W / DC 250W x2

Abnormal voltage alarm: Support

Incorrect cell count setting alarm: Support

Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-10S, NiMH/Cd 1-16S

Working temperature: 0~40?

Storage temperature: -20?~60?

Dimension: 135x115x49mm

Weight: About 485g

Technical data

Input Voltage (V):

AC 100~240V / DC 10~30V

Rechargeable batterie-types:

LiFe, Lilon, LiPo,LiHv,NiMh/Cd,Pb

Rechargeable cell count:

LiFe, Lilon, LiPo 1~6S/Pb 1-10S

Power (W):

250W x2

Charging current category:

10A

Selection category:

Ladegeräte 12+220V
