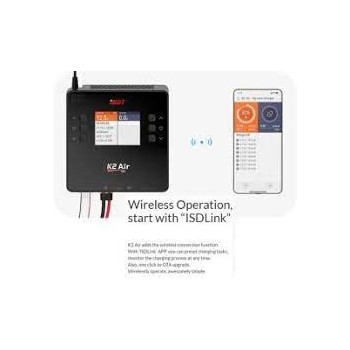

ISDT - K2 Air Dual Charger 200 (500)W x2 AC/DC 1-6S w. BattAir Technology

Description "ISDT K2 Air Dual Charger 200 (500)W x2 AC/DC 1-6S w. BattAir Technology"

AC/DC Dual mode | Dual channel fast charge
Synchronous Parallel charging | 2.8" IPS LCD Display

AC /DC dual input meet different use requirements.
Output: AC /200W, DC /500Wx2.

AC/DC Safe access
Fool-proof input interface. Smart design
The DC input port and AC input port are mutually exclusive.
Only one input can be selected in one time,
Ensure the safety operation.

Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 500W for single port.
Choose ISDT, Powered by Innovation.

2.8" IPS LCD Display
Low power consumption, 178° visible angle
Display clear and distinct
Even in varies hard environment or angles
As well as in strong sunshine.

Two-way USB interface
By connecting the charger microUSB port to the PC,
all series can acquire latest firmware upgrading.
It can also output 5V/2A power through the USB Type-C interface,
For charging mobile devices.


Support Brand New BattAir Smart Battery Technology.
Smartly exchange information with BattAir battery,
Automatically identify the battery type,
match the optimal charging parameters.
Safe and smart.


Specifications:

Input voltage: AC 100~240V / DC 10~30V

Output voltage: DC 1~30V

Max. input current: DC 35A

Charging current: 0.2~20A x2

Discharging current:0.2~1.5A x2

Balance current: 1.5A/Cell Max

Max. discharging power: 15W x2

Max. charging power: AC 200W / DC 500W x2

Abnormal voltage alarm: Support

Incorrect cell count setting alarm: Support

Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S

Parallel charging power and current: 800W/35A

Parallel discharge power and current: 30W/3A

Working temperature: 0~40°C

Storage temperature: -20°C~60°C

Dimension: 135x135x64mm

Weight: About 700g

Technical data

Input Voltage (V):

10-240

Rechargeable batterie-types:

LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb

Rechargeable cell count:

1-6 Lixx, 1-6 LiHV, 1-16 Nixx, 1-12 Pb

Charge current (A):

0,2-20

Discharge current (A):

0,2-1,5

Chargers category:

AC/DC 12V+240V

Power (W):

500x2

Charging current category:

Up to 20A

Discharge current category:

Up to 5A
