SAVOX - SAX151 - SB-2271SG Brushless High Voltage 2BB 20Kg 0,065sec/60° 7.4V, 69gr

Dati Tecnici - Technical Data

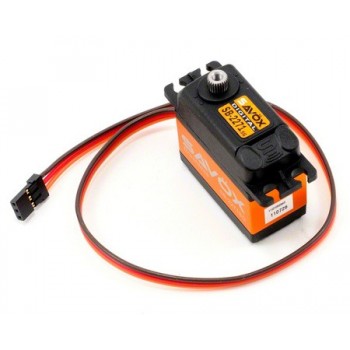

Savox SB-2271SG "High Speed" Brushless Steel Gear Digital Servo (High Voltage)

This is the Savox SB-2271SG "High Speed" Brushless, Steel Gear, High Voltage, Digital Servo.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
Super light-weight.
Brushless motor provides extremely high speed, incredible efficiency, and low power consumption.
Extremely strong unique steel gears ensure long-life and durability.
The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Totally green – from materials to production, these servos are environmentally friendly.
Ideal for rock crawlers, monster trucks and buggies, as well as every control surface for giant scale aircraft.

Specifications:

Dimensions: 40.3x20.2x38.5mm
Weight: 69.0g
Speed:
@ 4.8V: .10 sec/60
@ 6.0V: .08 sec/60
@ 7.4V: .06 sec/60
Torque:
@ 4.8V: 152.8 oz-in
@ 6.0V: 208.3 oz-in
@ 7.4V: 277.0 oz-in/20.0Kg
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
Output Shaft: 25 Tooth Spline
