SAVOX - SAXSV-1260MG Digital High Voltage Aluminum Case 0.055/12kg 7.4V

Dati Tecnici - Technical Data

SV-1260MG

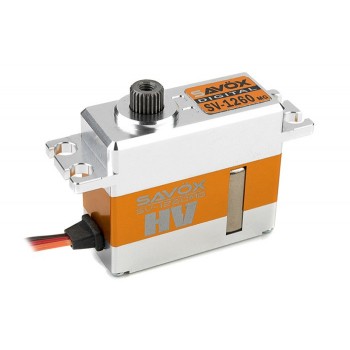

Savox - SV-1260MG Digital High Voltage Coreless Motor Servo, Metal Gear

Features:

- Leading edge digital servo technology

- High efficiency Coreless motor

- Accurate and fast response

- Super high resolution

- Aluminium center case for improved motor cooling and total strength

- Ball beared

- Precision Metal gears

Technical specifications:

Servo Technology: Digital High Voltage

Input Voltage (V): 6.0V - 7.4V

Servo Type / Size: Midi

Motor Type: Coreless Motor

Gear Material: Metal Gears

Ball Beared: Ball Beared

Servo Case: Aluminium - Composite

Speed 60°/Sec @ 7.4V: 0.055 Sec/60°

Torque kg/cm @ 7.4V: 12.0 Kg/cm

Length (mm): 35.0 mm

Width (mm): 15.0 mm

Height (mm): 30.7 mm

Weight (g): 29.5 g

Connector type: JR

Spline size: 25T Spline
