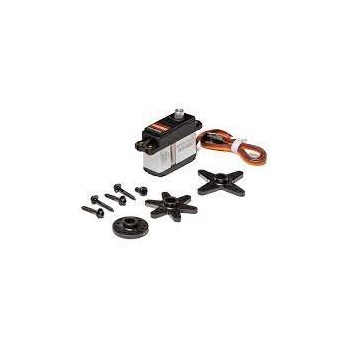

Spektrum - A5080 MT/HS Mini Digital HV Servo

Deadband <1µs

Input Voltage 4.8V-8.4V

Product Height 1.18" (30 mm)

Servo Type Digital

Product Length 1.4" (36 mm)

Servo Operating Voltage 4.8 - 8.4V (HV)

Product Width 0.59" (15 mm)

Motor Type Brushed

Maximum Servo Torque 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V

Material Aluminium

Programmable No

Servo Size Category Mini

Max Servo Torque 100-199 oz-in

Overload Protection No

Product Weight 1.2 oz (34g)

Spline Count 23 - Tooth

Bearing Single BB

Bushing Or Bearing Bearing

Gear Type Metal

Maximum Servo Speed 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V
