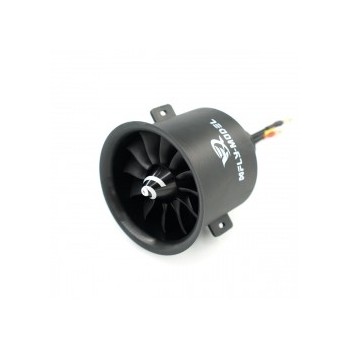

XFly - Galaxy EDF Ducted Fan X4 Model 40mm 12 blades + 3/4S Motor 5000KV

EDF Ducted Fan XFly Galaxy X4 XFLY-Model 40mm 12 blades + 3S/4S Motor 5000KV

Features

First class mold design

Mate finished surface for EDF and blades

Advanced injection molding process

CNC metal spinner with a laser technology used for the spiral pattern

Composte material with high strength and tenacity

Active noise cancellation

High speed running

Turbine-like sound

The motor and fan unit comes assembled and balanced from the factory.

Measures

 Description / LiPo

3s(12.5v)

  4s (16.5v)

Thrust:

360 g

500 g

Current:

15 A

20 A

Power:

187 W

330 W

Recommended ESC:

20 A

30 A

Recommended battery:

800 mAh

 800 mAh

The controller should be chosen 20% over rated due to the long lasting load.

LV = low voltage controller up to 6s, HV = high voltage controller above 6s.
Battery should be chosen about 15/ - 1/20 of the max current for 4-3 minutes WOT. 30-40 C is appropriate.Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.

Technical Specifications

Motor : Brushless 1413-5000KV

Motor: shaft 3mm

Rotor: 12 blades

Internal diameter: 40mm

External diameter: nc

External diameter w/lip: nc

Combo max thrust: 360g 3S / 500g 4S

Weight: 40g  (combo EDF + lip + motor )

Recommended max. rotation speed: nc
