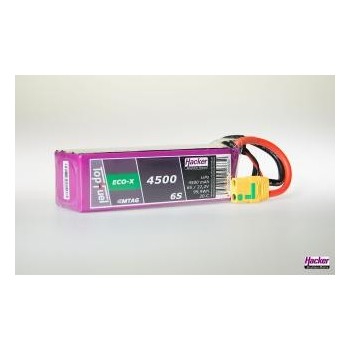

Hacker - TopFuel LiPo 20C-ECO-X 4500mAh 6S MTAG XT-90

Internal chip for battery telemetry

Battery data such as type, number of cells, capacity, C-rate or battery ID are stored on the passive MTAG chip. If desired* these values can be read out with an external NFC sensor such as the HACKER or JETI MTAG and be transferred to the transmitter telemetry system.

The built-in MTAG chip also offers the possibility of manually or automatically counting and storing the charging cycles. By using several identical batteries in serial or parallel operation, so more effective active battery management is possible.

*Note: It is up to the user if he wants to use the MTAG function or not. The TopFuel battery can be used without MTAG function like any ordinary battery.

Specifications

Battery type

LiPo

Ausführung

6S

Cells

6S

Nominal voltage [V]

22,2

Capacity [mAh]

4500

C rate

20C

Balancer connector

XH

Dimensions and Weight

Length [mm]

140

Width [mm]

43

Height [mm]

48

Weight [g]

621
