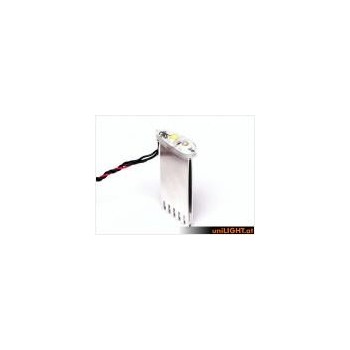

UniLIGHT - DUAL11F - 16Wx2 Navigation & Strobe, 11mm, T-Fuse RTWE

Powerful position and flash light in a housing. The profile light of the 11mm series is slim outside and fits optically also onto smaller models. Due to efficient LED emitter, the light has an enormous luminous power despite the compact dimension and thus it's also suitable for bigger models. The innovative, internally positioned cooling surface enables astonishingly compact dimensions with a unique slim design.

In delivery state, the profiled polycarbonate cap is simply attached. It can be varnished separately. It's highly transparent and unbreakable.
The assembly of the lamp is astonishingly easy: With a simple surface mount, all you need is a slit of 3x28mm. In this way, the luminaire can be also mounted on smaller wing tips or fuselage. If desired, you can recess the luminaire up to 4mm, thus achieving an even smaller construction. The cap must be glued after the final assembly.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 4W-3S adaption cable. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.

Technical Data

Electricity: 8Wx2 RED and 8Wx2 WHITE reference power, 8(12)V, 2x0.7A
Beam angle: >160°
Light intensity: ~200 Lumen RED
Light intensity: ~300 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimension light cap: 11.5x42.5x10mm, up to 4mm lowerable without loss of beam angle
Total mass: 11.5x42.5x70mm
Weight: 13g (without cable)
