UniLIGHT - DUAL7-060x2-GNWE -Bianco/Verde 4Wx2 Navigation & Strobe, 7,5mm

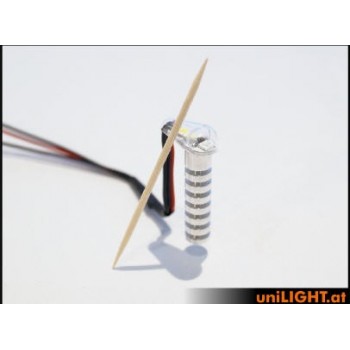

Miniature position and flash light in a housing. The profile light of the 7mm series is externally very slim and fits optically onto the smallest models with big scale factors. With the new COB emitting chip ensures a high light output despite the micro dimension and is therefore also suitable for larger models.

In delivery state, the profiled polycarbonate cap is simply attached. It can be varnished separately, is highly transparent and unbreakable. The assembly of the lamp is astonishingly easy: With a simple surface mount, all you need is drill a 7mm hole. In this way, the luminaire can be also mounted on smaller wing tips or fuselage. The cap must be glued after the final assembly.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.

Technial Data

Electricity: 2Wx2 RED/GREEN and 4Wx2 WHITE reference power
Beam angle: >150°
Light intensity: ~50 Lumen RED, 0.17A
Light intensity: ~70 Lumen GREEN, 0.17A
Light intensity: ~220 Lumen WHITE, 0.3A
Dimension: 19x8x6
Dimension cooling pin: D7x29
Weight: 4g (without cable)
Delivery: ready to use with 2x0.5m PTFE cable and ready made series resistor for 2S, resistor for 3S enclosed
