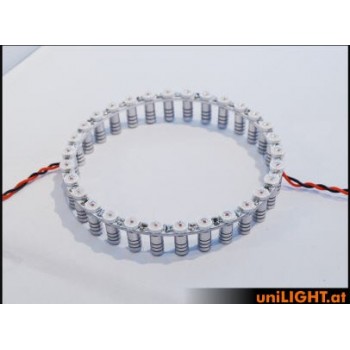

UniLIGHT - RING-109-OR Afterburner Ring 109mm, 2300+ Lumen

Our Ultra-Power afterburner rings are the first thrust nozzles based on emitter technology in the market. Specially manufactured aluminium core PCBs for this application is what makes the assembly of the high-performance emitters and the required heat dissipation possible. In addition, one cooling duct behind every emitter is adhered to dissipate enough heat during operation. Without any furhter air cooling, the rings can be operated permanently ca. 1-2 minutes and therefore, the mixing to the gas channel should only happen in the upper section.

The light output of the emitter rings is gigantic high and even in an area of >120° to all ring sides visible. Thus, it will both directly shine into the outlet and into the nozzle, which strengthens tremendously the effect of a glowing pushing rod.

Direct operation with 2S (8V) Lipo. Please ensure sufficient cooling air during operation. The high power requirement of the afterburner rings requires sufficiently dimensioned batteries and an efficient control. Please see our recommended modules.

This ring is delivered with two 1m/0.5mm silicon cables. These cables can be plugged in parallel into the control. A boost effect can be created when using 2-Channel controls in order to operate the afterburner ring in the maximum operation mode with the highest performance via both cables. For a better light distribution, you can use our nozzle attachments under the rubric accessories.

Technical Data

Performance: 30 emitters with 60-90 Lumen
Voltage: 2S/8V
Electricity: 4.5-5A
Beam angle: ~100°
Internal Dimension: 108.6mm
External dimension: 122.4mm
Weight: 62g (without cable)
Delivery: ready to use with 2x1m connection cable for 2S LiPo operation
Size comparison uniLIGHT afterburner rings
