UniLIGHT - SLIM-040-RT 4W Navigation Light, 10mm

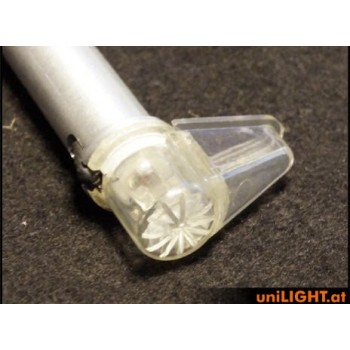

Thin high-performance light with 4W and wide beam angle through a specialspreading cap. The slim light is delivered as a ready assembled unit on a special, CNC manufactured aluminium tube and a permanently mounted polycarbonate cap as covering. The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 4W-3S adaption cable.

Additionally, the scope of delivery contains another cap of polycarbonate, which transforms the luminaire into a profiled/drop-shaped outside light. The cap can be separartely glued in and individually varnished in the model colour.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with assembly of cooling elements are suitable for continuous operation if air convection is possible. Please check operation temperatures after installation.

Technical Data

Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~70 Lumen GREEN
Light intensity: ~100 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10/12mm, 57.5mm length
Weight: 5g (without cable)
Delivery: ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed, profiled expansion cap
