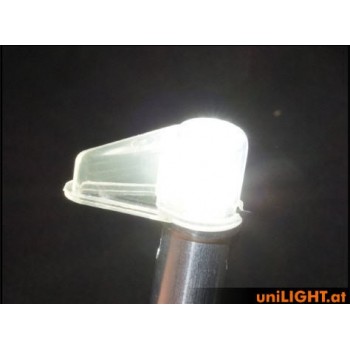

UniLIGHT - SLIMF-080x2-RT 8Wx2 Ultra-Power SLIM, 10mm, T-Fuse

Thin high-performance light with 8Wx2 and wide beam angle through a special spreading cap. The slim light is delivered as a ready assembled unit on a special, CNC manufactured aluminium tube and a permanently mounted polycarbonate cap as covering. The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 8W-3S adaption cable.

Additionally, the scope of delivery contains another cap of polycarbonate, which transforms the luminaire into a profiled/drop-shaped outside light. The cap can be separately glued in and individually varnished in the model colour.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These 8W luminaires are not suitable for continuous operation without additional cooling, operation times of a few minutes are possible. Please check operation temperatures. The luminaires are perfectly suited to be BEACON or ACL lights. The integrated temperature sensor will switch off the light in case of overheating, thus the usage as powerful position light is possible.

Technical Data

Electricity: 8W reference power, 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~200 Lumen RED
Light intensity: ~300 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10x12.5mm, flange for carrier D12mm
Total mass: D10/12mm, 57.5mm length
Weight: 5g (without cable)
Delivery: ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed, profiled expansion cap
