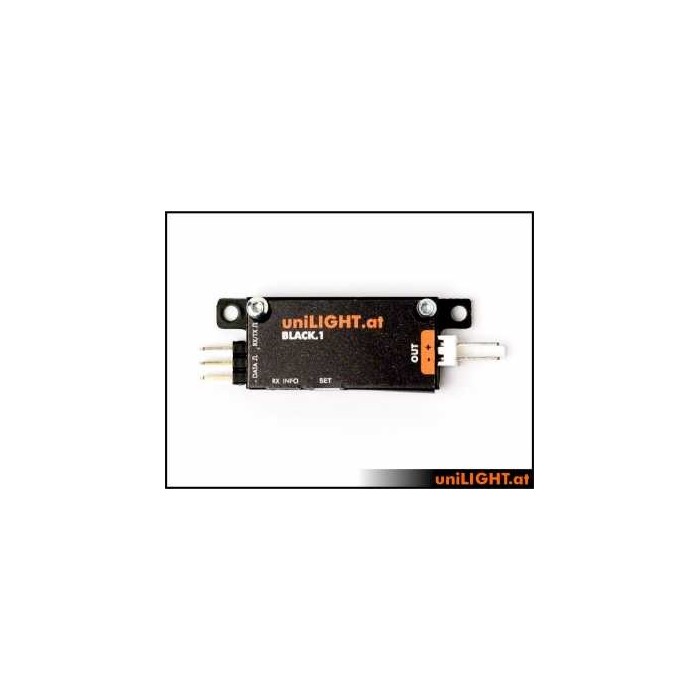

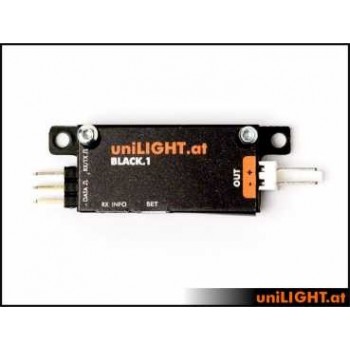

UniLIGHT - Modul - B1

25,50 €
Tasse incluse
6996
Quantità
Non disponibile

UniLIGHT - Modul - B1
100% secure payments

Questo prodotto può essere acquistato con COD

Our new control unit Black.4 is the new, slim reference desing for most light systems. It delivers fast and brillinat results for all ranges of modelling and was massively improved in all areas of operation. With the four functions: strobe, beacon/ACL, navigation and spotlights - all controllable over one servo channel - it is perfectly usable for nearly each aircraft.

New in BLACK series

Dynamic nicer, faster and sharper defined light effects

Variety more light patterns preprogrammed

Dimensions reduced size and weight, polarity correct output sockets

Safety basic shortcut protection, cut off and automatic restore

Power up to 5 ampere per channel, 8 ampere combined

Battery deep discharge protection for connected Lipos

Master-Slave activation by the receiver power

Scale soft transition as special function selectable

Sport navigation with strobe function for many sport applications

Future new hardware platform allows future updates

Special Function

Slow Signals a soft transition simulates a soft glow-on and glow-off like an old glow bulb or simulates a rotating beacon effect of slow blinking functions.



Fast Signals during strobe sequences a basic level of around 20% power is given to the light. With these function a strong strobe light can be operated as navigation light AND at the same time be a strobe signal. Perfectly usable on sport models: one light, two functions

Technical data

receiver side 4.8-9.6V

weight ~8g, without wire

dimension 50x35x6mm

load per channel 5A to 16V (>6A peak)

total load up to 8A

galvanically isolated circuits

operation without RC possible

15+1 classic effects with variable speed

15+1 modern effects with variable speed

15+1 special effects with variable speed

soft transition programmable

sport-nav mode programmable

short circuit protection

deep discharge protection

reverse polarity protection

simple servo output for dropouts, switches or valves

including quick-snap mountig brackets











6996
