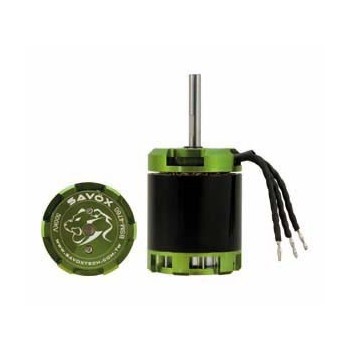

Savox - SAXBSM-4760-500 Brushless motor (BSM) 500KW Dim. 47x60 Weight 355 Gr Long shaft

Dati Tecnici - Technical Data

The Savöx BSM4760 500KV 600 class Brushless Outrunner Motor keeps your RC helicopter flying high while cooling itself down.
The machined aluminum housing with 6 angled cooling ports and an internal cooling fan allow Savöx out runner motors to pump air
through the motor, giving you a 10% drop in temperature over other popular brands. Agile and fast, the brushless motors facilitate
sharp moves in your flying experience. Weight = 358g.


Features:
•  Unique cooling system design patented by Savöx.
•  Hand wound stator to ensure consistent winding.
•  Durable black Electro-Coat finish on the flux ring.
•  High-tech laser etched logos and item numbers to better maintain balance of the motor. No stickers or decals throwing off your tick-tock!
•  Top quality stator plates are epoxy coated on the inner surface to prevent winding shorts. The stator plates are .020mm in diameter.
•  Premium shielded ball bearings are used to support the shaft in all motors.
•  Superior temperature range - 180 C (356 F) rated wire is used to help prevent burning up the motor in long pattern flights.
•  Adhesives designed to withstand high temperatures are used to secure the stator windings and prevent them from shifting, pinching, or shorting out.


Specifications:
1. Rated Voltage             22.2 V
2. Voltage Range             3-6 S  minimum
3. No-load current             9.1 Amps
4. Max. Continuous Power       2780 Watts
5. Max. Continuous Current      134 Amps
6. Terminal Resistance               9mΩ
7. KV Motor KV (No Load)      1200 KV
8. Pole                   10 P
9. Slot                   12 N
10. Motor Weight           358g
