Align - HML73M01 730MX Brushless Motor(850KV)

Dati Tecnici - Technical Data

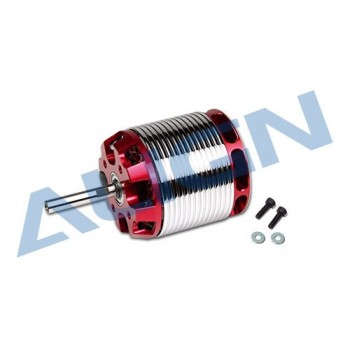

730MX Brushless Motor(850KV)

Instruction:

Brand new 730MX motor is especially designed for power upgraded T-REX 550E, normally found in 700 class high spec helicopter, that enthusiasts can

clearly feel the dramatic increase in power and torque, while taking advantage of its higher efficiency, lower current and temperature benefits.
• The 730MX(850KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
• Maintenance free, high torque, high efficiency, stable and quiet.
• High-speed ball bearings, powerful magnetic outrunner rotor.
• Suitable for T-REX 550E helicopters,Must with 550E PRO Motor Mount(H55B002XXW)?550E PRO Carbon Fiber Main Frame-2.0mm(H55B003XXW)?Motor Pinion

Helical Gear 16T(H55G003XXW)


Specification:

• Input voltage: 6S
• Max continuous current: 115A/195A(5sec)
• Max output power: 2550W/4330W(5sec)
• KV value: 850KV
• Stator Arms: 12
• Magnet Poles: 8
• Dimension: 6x52x89.1mm
• Weight: 380g

Specification:

• Socket screw(M4X10) x 2
• Washer(Ø4XØ10X1) x 2
• 4mm gilt terminal x 3
