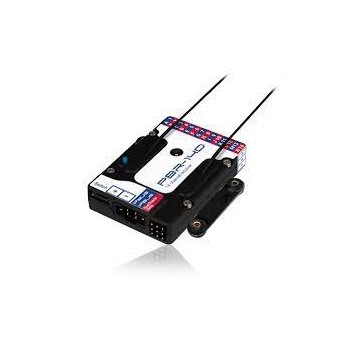

Powerbox - PBR-14D

Features

14 channel 2.4GHz receiver

Two independent redundant receiver circuits

Optional PBR26XS to add additional redundancy

Extreme interference rejection

Ultra-long range

Option of iGyro SAT

Two integral telemetry / servo bus (P²BUS)

30cm long antennas for all mounting situations

Built in electronic switch, activated by integral button, MicroSwitch or MicroMag

MPX High power connector up to 20A

Powerful real-time telemetry

Reception quality, battery voltage, current and capacity available via telemetry at the transmitter

Auxiliary output as serial interface (FastTrack, S.BUS and SRXL)

Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage

4.0V - 9.0V

Current drain Power-on state

105mA

Supported RC systems

ATOM/CORE

Channels

14

Programmable servo outputs

FastTrack, SRXL, S.BUS

Servo signal resolution

4096 Steps

Signal frame rate

12ms, 15ms, 18ms, 21ms

Integral gyro system

optional with iGyro SAT

Supported telemetry systems

P²-BUS

Dimensions

62 x 42 x 13 mm

Weight

29 g

Temperature range

-30°C to +85°C
